Pro-R Indoor ductwork is your lightweight, durable, and easy-to-install solution for interior projects

Pro-R Indoor provides superior thermal performance and ease of install with the proven KoolDuct system

Pro-R Indoor builds upon the Kingspan KoolDuct system to provide a stronger, pre-assembled, extremely lightweight and high performance solution for all interior insulated ductwork applications. This enhancement of KoolDuct allows the application in higher static pressure projects as well as in environments that require a thermal break.

Regular KoolDuct is also available through our Pro-R Indoor product line which provides a great solution for low static pressure applications. Our indoor phenolic solution offers the highest R-values in the industry ranging from R-6 to R-24 and near-zero leakage rates. Pro-R Indoor is contractor friendly and built to SMACNA Standards. Providing a long-life duct solution, Pro-R greatly reduces air leakage, provides superior thermal performance and unmatched ease-of-install with an efficient closed-cell phenolic foam insulation.

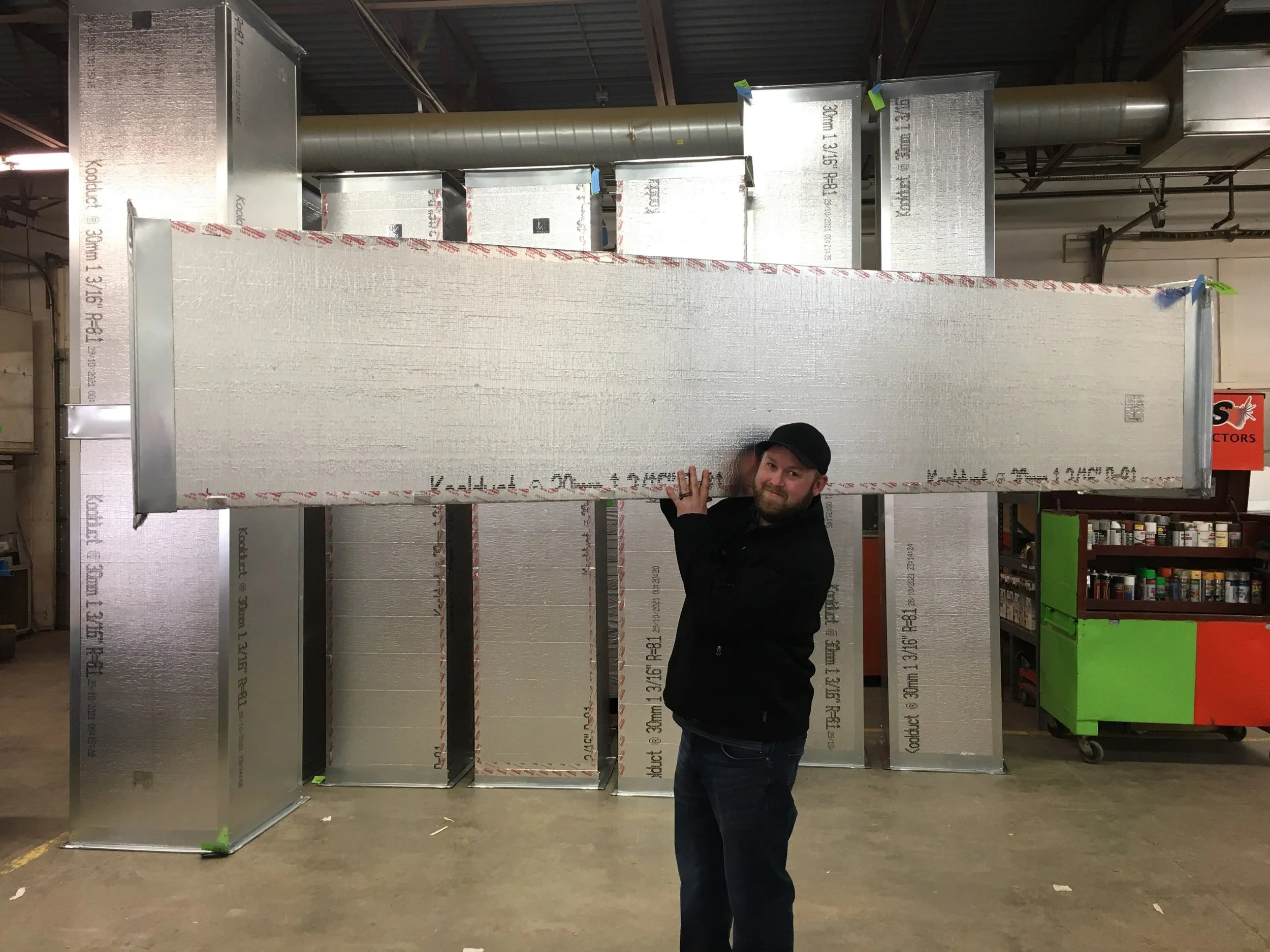

Pro-R Indoor weighs about half as much as traditional insulated duct, which in return saves on labor cost and makes it the perfect solution for tight spaces.

If you’re looking for an easy-to-install, efficient, pre-insulated ductwork solution for your next project, look to Pro-R.

Advantages of our pre-insulated, KoolDuct indoor product include:

On left, one section of Kingspan KoolDuct System. On right, multiple sections of galvanized sheet metal.

High R-Values from R-6 to R-24

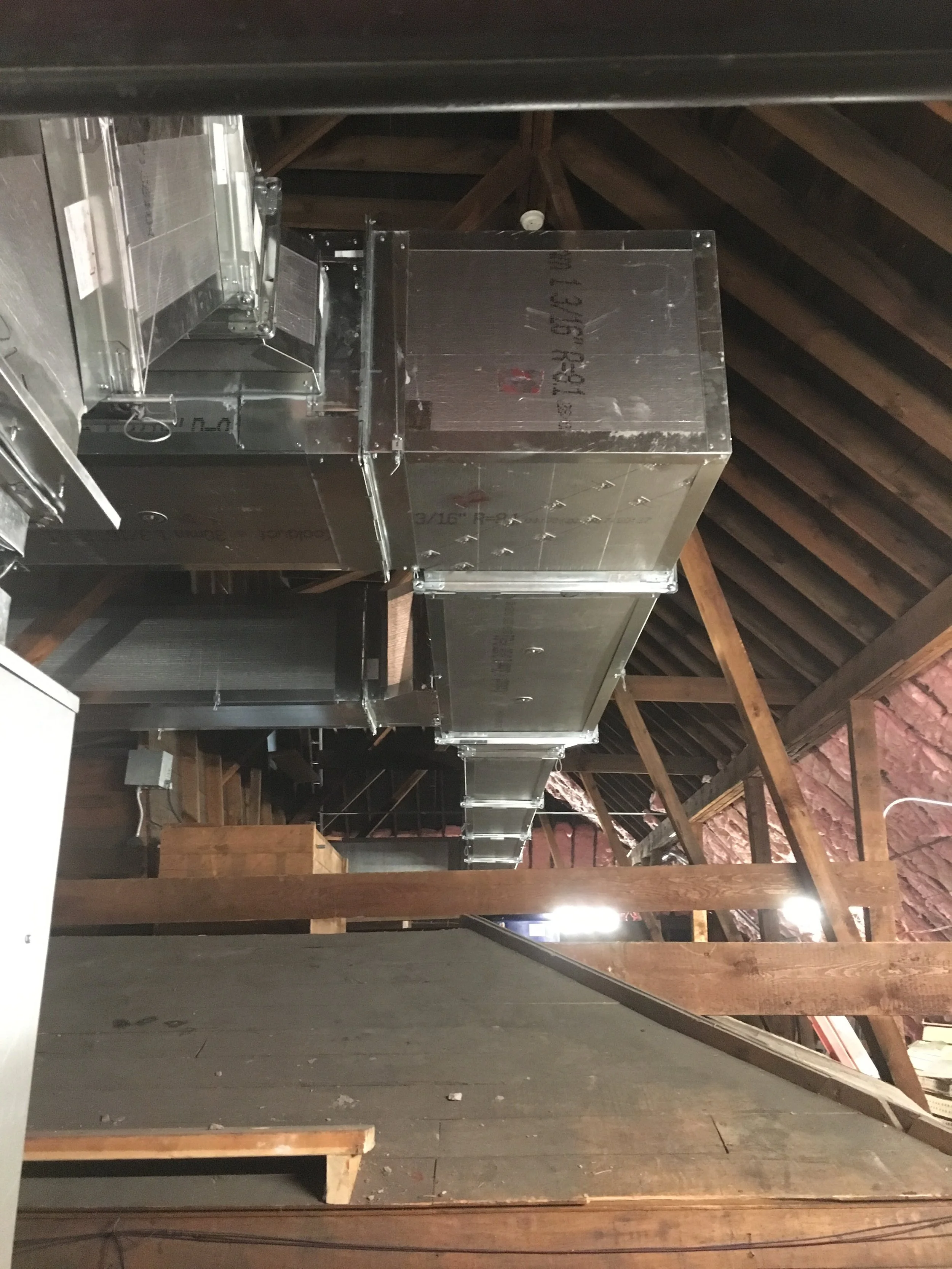

Ideal for mechanical rooms, attics, shafts, and hard-to-reach interior spaces
Lightweight phenolic insulation delivers high R-values and energy savings
Designed static pressure -3” to +6” w.g.
Thermal efficient and proven Kingspan KoolDuct closed cell phenolic insulation
Available with TDC and 4 bolt connections, making installation contractor friendly
13 ft. joints provides saving labor and material costs for installation
UL 181 listed and built to SMACNA Standards
Near-zero air leakage

Pro-R for Engineers

Saves energy, space, and labor
Significantly lower leakage
Long product life
Improved indoor air quality

Pro-R for Contractors

Lightweight and easy to install
Significant labor savings and faster installation
Available with TDC and 4 bolt connections
No insulation contractor needed

Pro-R for End Users

Greatly reduces energy costs
Fiber-free insulation exposure
Long-life design and virtually maintenance-free

Specifications

Pro-R Indoor Duct:

Pro-R Internal Duct Insulation:

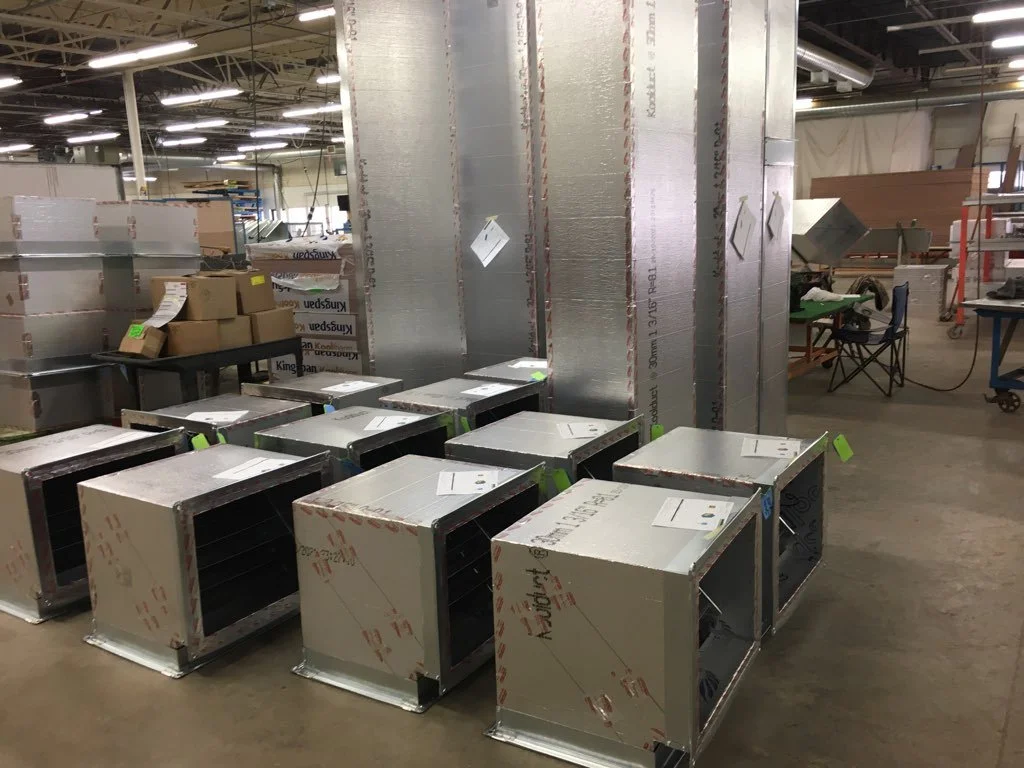

Pre-Assembled Duct and Fittings

Fiber-free Kingspan KoolDuct Phenolic Foam
Manufactured to SMACNA Standards
Incredible Fire and Smoke Performance
Lightweight, Up to 70% Lighter than Metal
R-values up to R-24

Closed-Cell, Zero-Fiber Kingspan KoolDuct Phenolic Foam

UL 181 Listed
High R-values and Combinations
Can Contribute to LEED Point(s) from the USGBC

Pro-R Compliance:

Easily achieves a SMACNA Class 3 Air Leakage @2”w.c.
SMACNA Seal Class B HVAC Phenolic Duct Construction Standards
Designed Static Pressure from -3” to +6” w.c.
ISO 9001 Consistent Quality and Performance

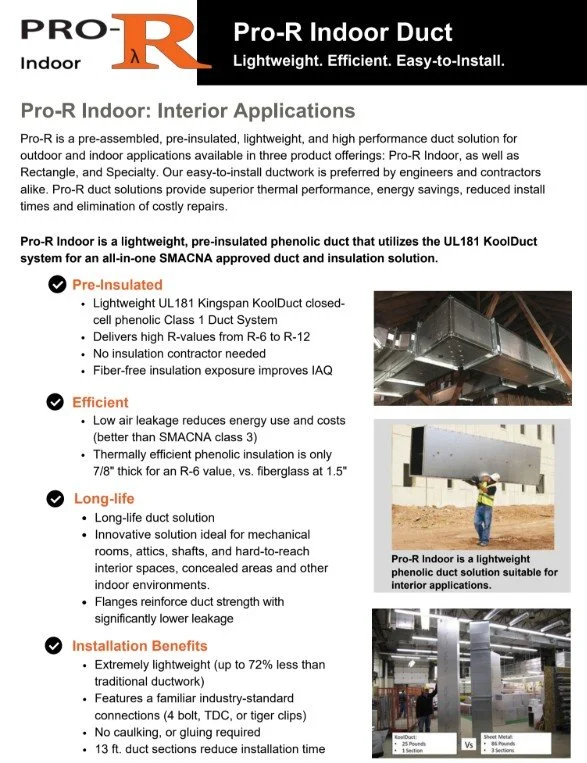

Download PDF

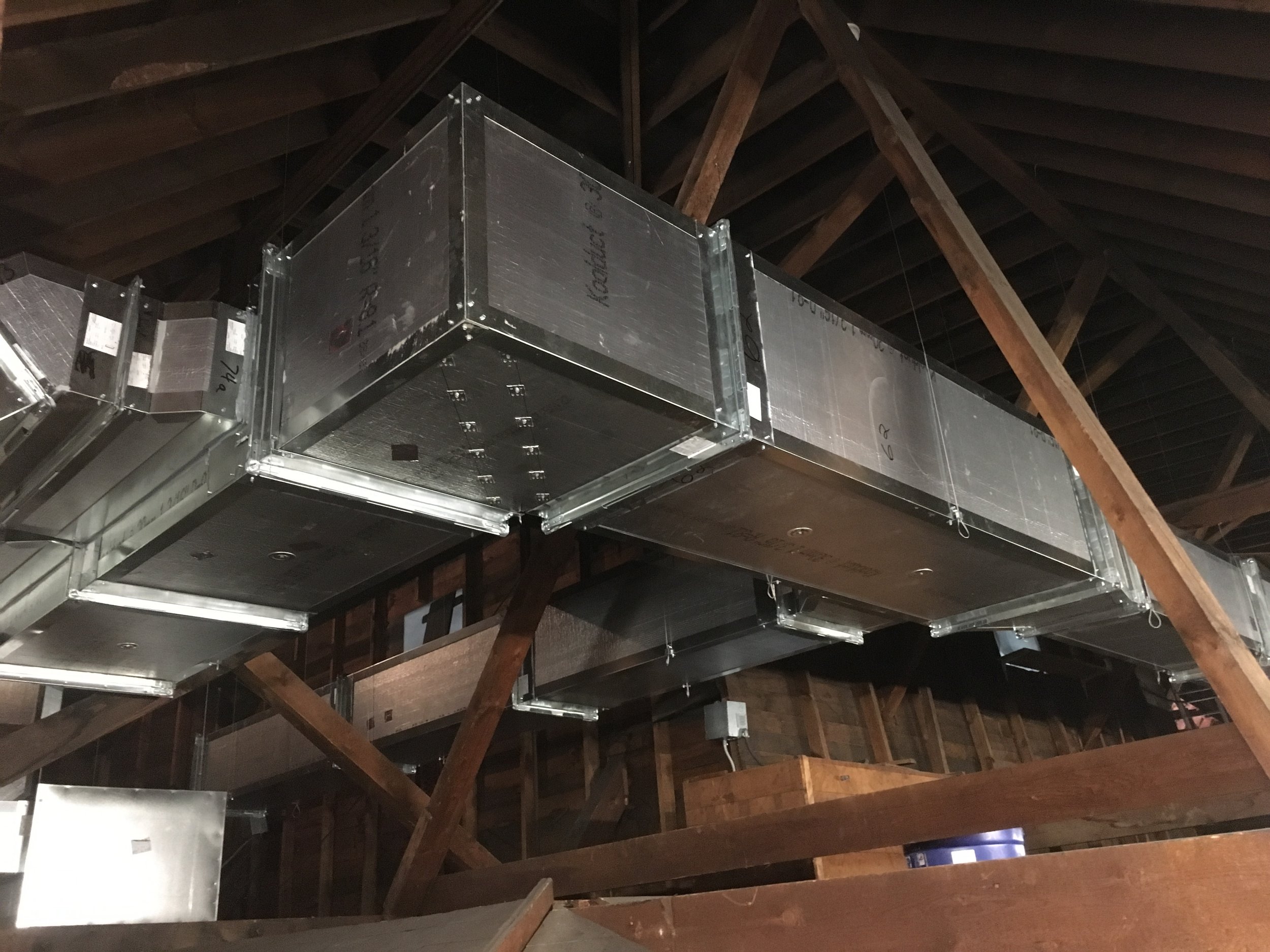

Pro-R Indoor / KoolDuct Case Studies

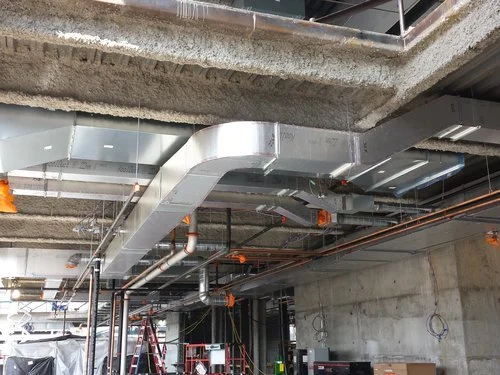

Pro-R Pre-Insulated Phenolic Ductwork

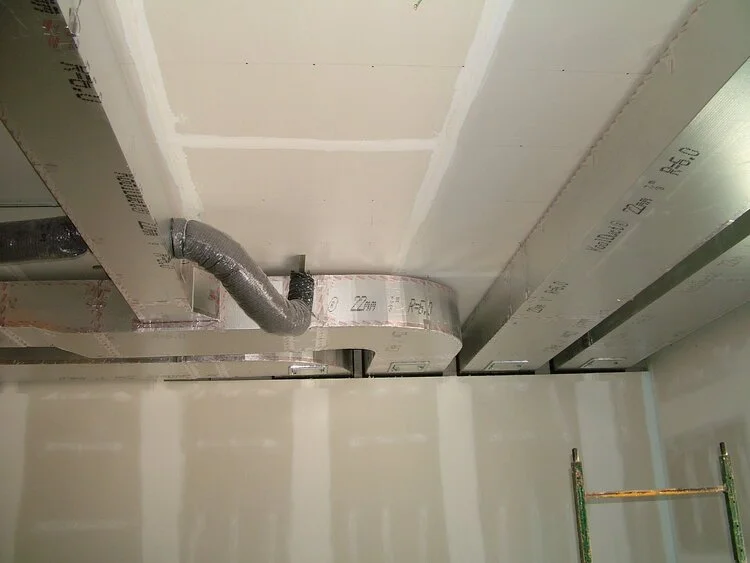

Our Pro-R Indoor duct systems use a Kingspan KoolDuct insulation with an aluminum lining for a high-quality, fiber-free duct. This makes Pro-R Indoor ideal for almost any interior application.
